Features:

• Combination of Resistance and Capacitance Deacade Box
• Accurate 0.1% to 4%
• Wide range from 100 pF - 100 µF & 1 Ω - 10 MΩ
• Compact, convenient, and rugged
• Direct reading and Error proof
• Combination of Resistance and Capacitance Decade Box
• Accurate 0.1% to 4%
• Wide range from 100 pF - 100 µF & 1 Ω - 10 MΩ
• Compact, convenient, and rugged
• Direct reading and Error proof:
• Color Coded

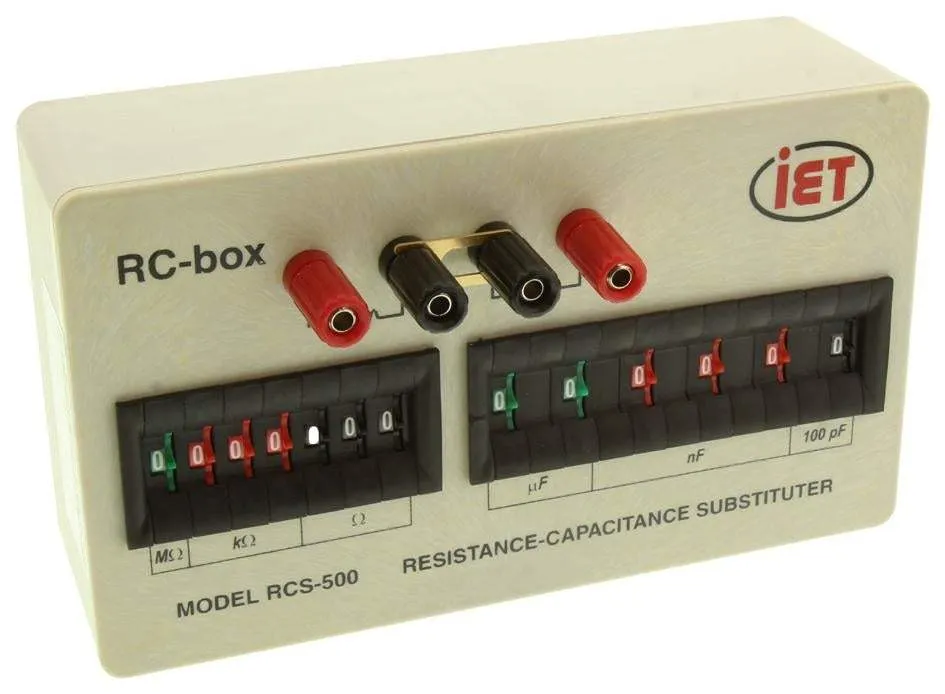

The RCS-box combines the features and specifications of both the R-box and the C-box in one convenient package. Ideal for setting timers, oscillators, and filters, the resistance and capacitance may be used independently, in series, or in parallel. A shorting link allows them to be coupled or separated.

One nice feature of the RCS Series is that it uses convenient side by side, color-coded, thumbwheel switches.allow for direct reading — There is no fumbling with multiple slide or rotary switches. Simply dial in the desired values and use!

Made of high impact plastic and weighing less than a pound, these decade boxes are very portable and can reduce clutter on a busy lab bench.
